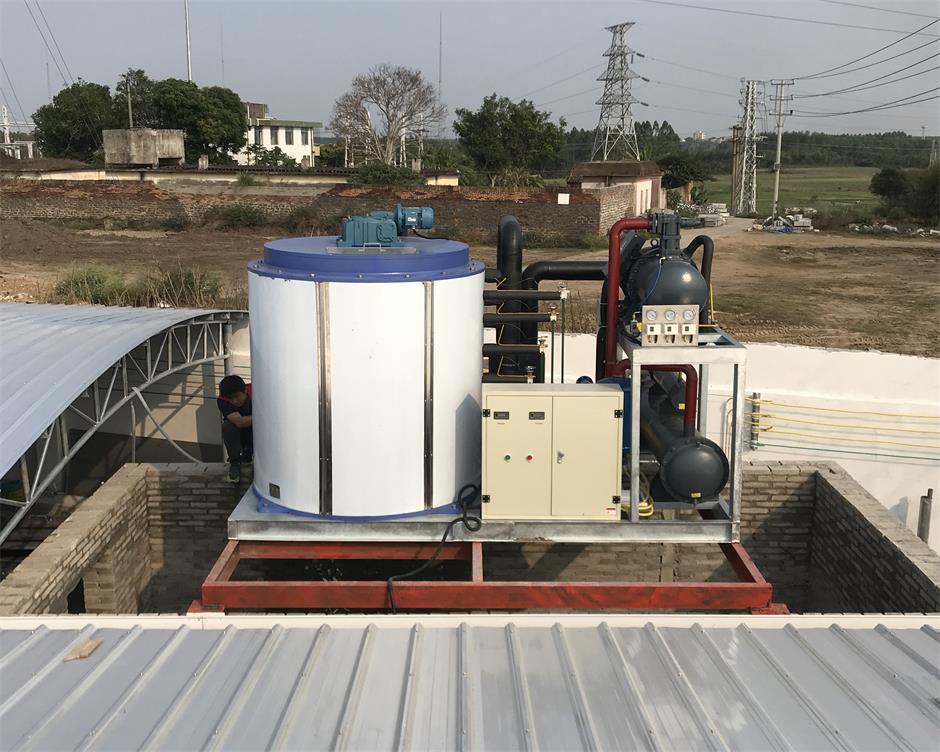

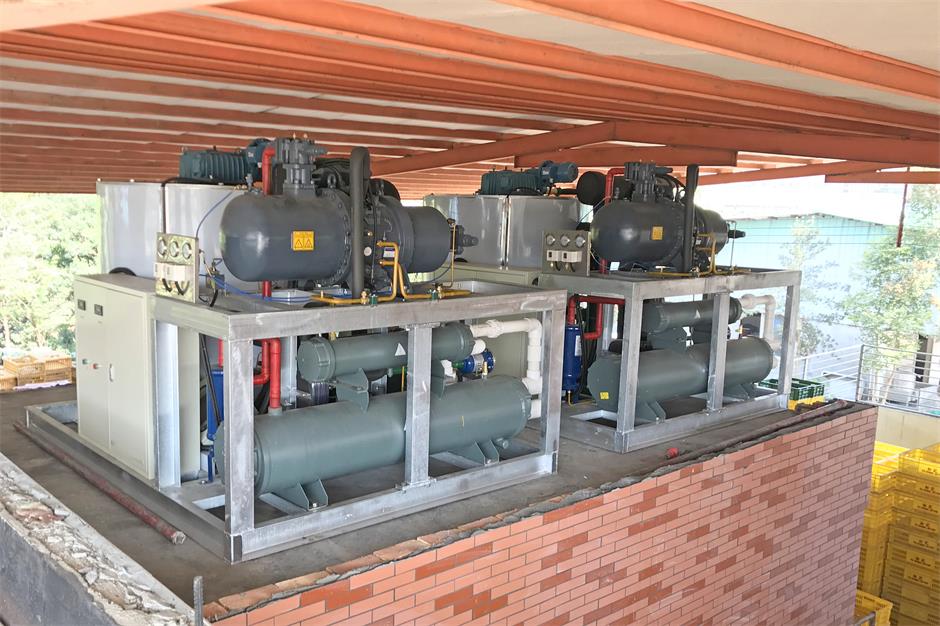

The flake ice machine is mainly composed of compressor,expansion valve,condenser,and evaporator,forming a circulating closed refrigeration system.

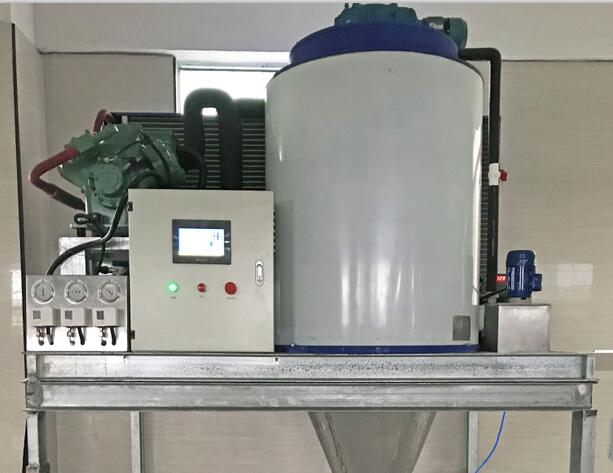

The evaporator of the flake ice machine is a vertical drum-like structure, which is mainly composed of ice scraper, main shaft, water sprinkler, and water receiving tray.
Driven by the reducer, they slowly rotate counterclockwise. Water enters the water distributing pan from the water inlet of the evaporator, then the water is evenly sprinkled on the inner wall of the evaporator through the sprinkler to form a water film. The water film exchanges heat with the refrigerant running in the evaporator flow channel.
